Report item
Item specifics
  • Brand Name: Ycall
  • Model Number: K-2000A+Y-650+K-O3-B
  • Name: Table Wireless Waiter Call System
  • Frequency: 433.92mhz
  • Reminder ways: Sound promt or vibration or both
  • Range: 200m in open area
  • Watch Type: Rechargeable
  • 3-key: Call, Bill, Cancel
  • Watch Size: 65*44*19mm
  • Button size: 60*60*22mm
  • Certification: CE
  • Application: Restaurant,Casino, Hotel, Bar, Hospital etc
Product Description

Table Wireless Waiter Call System For Restaurant Equipment Receiver And Waterproof Buzzer CE

( 1 display+1 watch+9 call button )

1 Set Table Wireless Waiter Call System Including:



1 x K-2000A display (show one group number and show 3-digit number)



1 x Y-650 watch ( Show 4-digit number from 0001-9999 and first letter can be A-Z )



9 x K-O3-Bred 100% waterproof call button ( we have 14 colors for your selection, if you need other colors contact me any time)

K-O3-BLACK-RED



K-O3 ALL COLOR





Table Wireless Waiter Call System is widely used in service area. It consist of table button for guest use and signal receiver  for waiter or waitress use. When the guest needs any service, he or she just press the button near him or her, his or her desk number will showing on the RECEIVER with alert music or sound. So the waiters could offer service very timely



Specification of Display Receiver K-2000A:

1. With high strength high strength ABS shell , durable in use
2. Desktop or wall mounted
3. Show one group number and 3-digit number.
4. Show different service type with letters(1 dot =Call, 2 dots =Bill, 3 dots =Drink ).
5. It can work with 999pcs 1-key or multi-key call buttons in max.
6. It can save 30 calling info in turn, and apply in basic service places.
7. Improve service level restaurant service for wireless calling system.
8. Dimension: 195*135*30mm

Technical parameters:
Working voltage:DC12V~18V
Working current:<20mm
Working Frequency:433.92mhz

K-2000A display

3-digit

k-2000 .new

Specification of Y-650 watch receiver:
1. Can work with 500pcs 1-key and multi-key transmitter in  max
2. Can show 3 group call number in one time
3.Show 4-digit number from 0001-9999 and first letter can be A-Z
4.Can indicate different service type via words or letter.(call;bill;drink; dessert ; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6.Can store 50 calls and track the history calls up and down
7.Shows current time when stand-by
8.3 reminder ways:sound promt and vibration or both
9.Battery is rechargeable
10.Dimension:65*44*19mm
11.two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.
NEW Y-650 2NEW Y-650 Electronic watch wrist calling receiverY-650 NEW

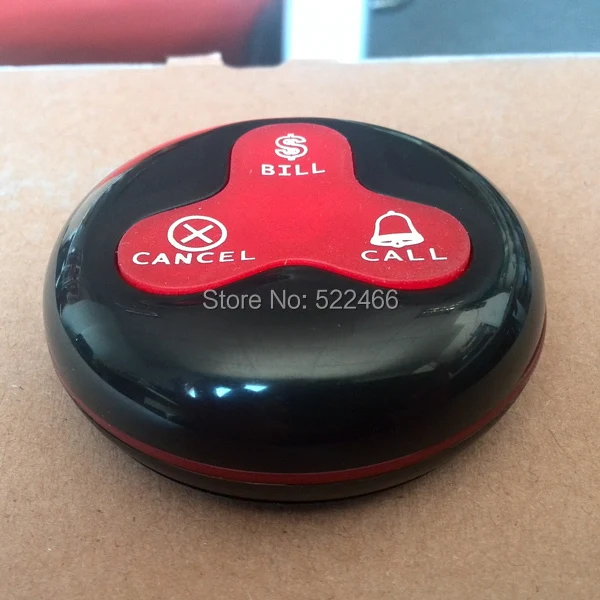

Specification of K-O3-Bred100% waterproof call button
1. 100% Water-proof
2. Work with our receiver to combined the wireless calling system
3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.
4. 3-key: Call;Bill;Cancel
5. Material: PC
6. Color:Black-black,Black-blue,Black-red,Black-green,Black-yellow


Technical Parameter:

Working voltage: DC12V
Working current: ≤35mA
Use Frequency: 433.92mhz
Transmitted Power: ≤10mW
Transmitted Distance>300m in open area
Dimension : 60*60*22mm
Any language any LOGO acceptable
 K-O3-BLACK-RED



About K-O3 series:

K-O3 black case



K-O3 series

O3 GBlack euroO3-Blackblack euro



O3

Restaurants Service k336 650 O3

K-O3 ALL COLOR



FAQ

Applications

Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

How does the system works?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table to take the order of the customer promptly and quickly.

The Table Wireless Waiter Call System More Picture:

K-2000A+Y-650+K-O3-B 1+1+9  Table Wireless Waiter Call System



 how to work (function).jpg

Introduction of Table Wireless Waiter Call System:

How to work:
It includes transmitting device and receiving device. Press the button on the transmitter, the receiver will receive the wireless signal and display (also can be with voice) which one is calling. So it is very easy used to improve service and efficiency.

Component:
Receiver:Dot matrix LED screen,LED screen,wrist pager(choose)
Remote contoller(optional)
Button:1-key button,2-key button,3-key button,4-key button(choose one or more)
Button stand(optional)
Menu holder(optional)
Pager: Alphanumeric
Signal enhancer:optional

Solution:
1)Revolutionary product to increase staff efficiency,lower labour costs.
2)Simple but elegant,value for money.
3)Improve customer appreciation of your service.
4)Provide a relaxed atmosphere.


Install and Maintain:
·Wireless products ,no wiring involved.The Display and Signal Enhancer are operated by 100-240V power supply,and the other accessories are 12V 23A battery operated.
·The buttons number can be defined by the Display Setting,the button can fixed or paste on the wall or table. and the button is waterproof.
·Some of buttons any language and logo is acceptable .Welcome your OEM.

Applications:
·Tea or Coffee House
·Restaurants
·Hotel Conference Rooms
·Executive Dining Rooms
·Spas and salons
·Health and Fitness clubs
·Hospitals
·Health Clubs
·Offices
·Massage House
·Nightclubs
·Bowling Alleys
·Churches
·Casinos
·Golf and Country Clubs

  The scop of application   Shipping warranty payment





If you are interested in any of our Table Wireless Waiter Call System, please feel free to contact me. I will reply to you in 24 hours, thank you!
